SPECIFICATIONS
net weight: 2.1
is_customized: Yes
Vmpp: 18.00V
VOC: 22.50V
Type: Solar Panel
Size: 540*500*25mm
Quality: TUV Certified
Origin: CN(Origin)
Number of Panels: 1
Number of Cells: 36
More data: Please visit the details
Model Number: FFSP-80M
Max. Power: 80W
Material: Monocrystalline Silicon
Material: Top grade raw materials
I sc: 4.69A
I mpp: 4.44A
Foldable Solar Panel: Yes
Flexible Solar Panel: Yes
Factory Outlet: Yes
Certification: CE
Brand Name: DOKIO
Delivery is not supported in the following areas:
1. Spanish island region. The zip code starts with "35" and "38".
2. Remote cities in Brazil. For example, Rio de Janeiro,AM,CE,PB,PI,BA
Model:FFSP-80M
We have more than ten years of experience in manufacturing solar panels and have passed many international certifications. The product is safe and reliable.
POWERFUL AND LIGHTWEIGHT: This solar panel packs 80W of power yet is only 12mm in thick and weighs only 2.1 kg, making it easier to transport.
High efficiency with quality silicon materials for long term output stability.

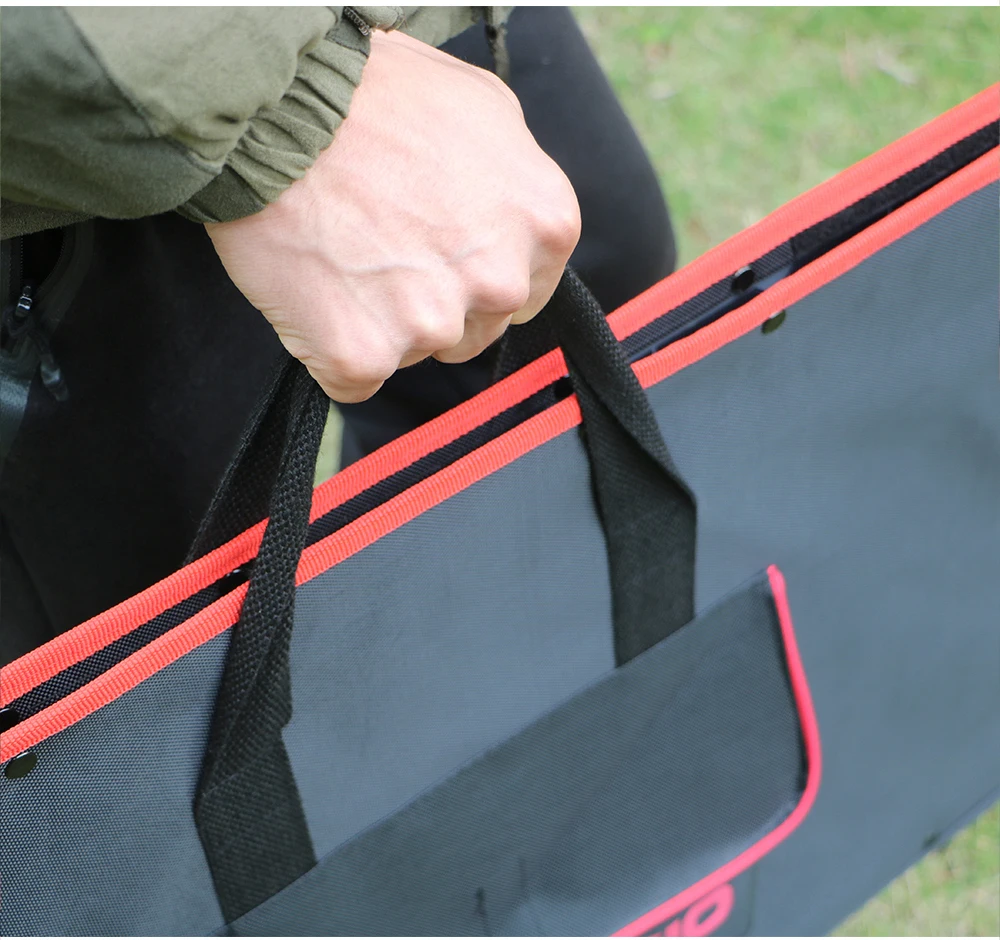

Foldable design, lightweight,portable and space saving,suitable for camping, hiking.
Performance Data
Maximum Power(Pmax): 80W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):4.44A
Open-Circuit Voltage (Voc): 21.60V
Short-Circuit Current (Isc):4.60A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
How To Test Power?
Additional Data
Foldable Dimension:22x20x0.47(in)/54x50x1.2(cm)
Expansion Dimension:40x22x0.24(in)/100x54x0.6(cm)
(The size is manually measured and there is a certain error.）
Packing List
1*Flexible Foldble Solar Panel
1*3M wire,1*English User Manual
1*12V PWM controller
Compared to other older controllers on AliExpress, this controller uses the XT60 port can reduce power loss.
Note:Controller support 12V lead-acid,lithium ions and LiFePO4 battries.

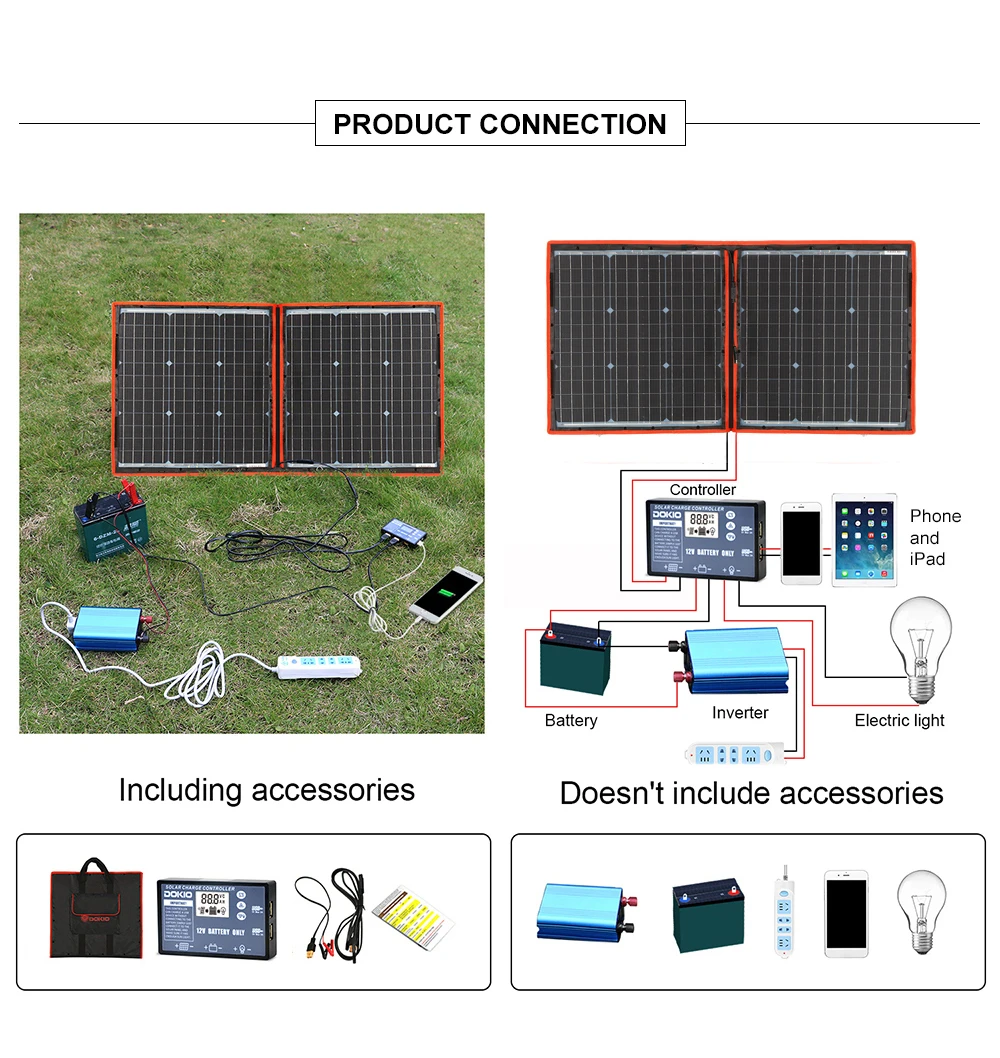

How to use?

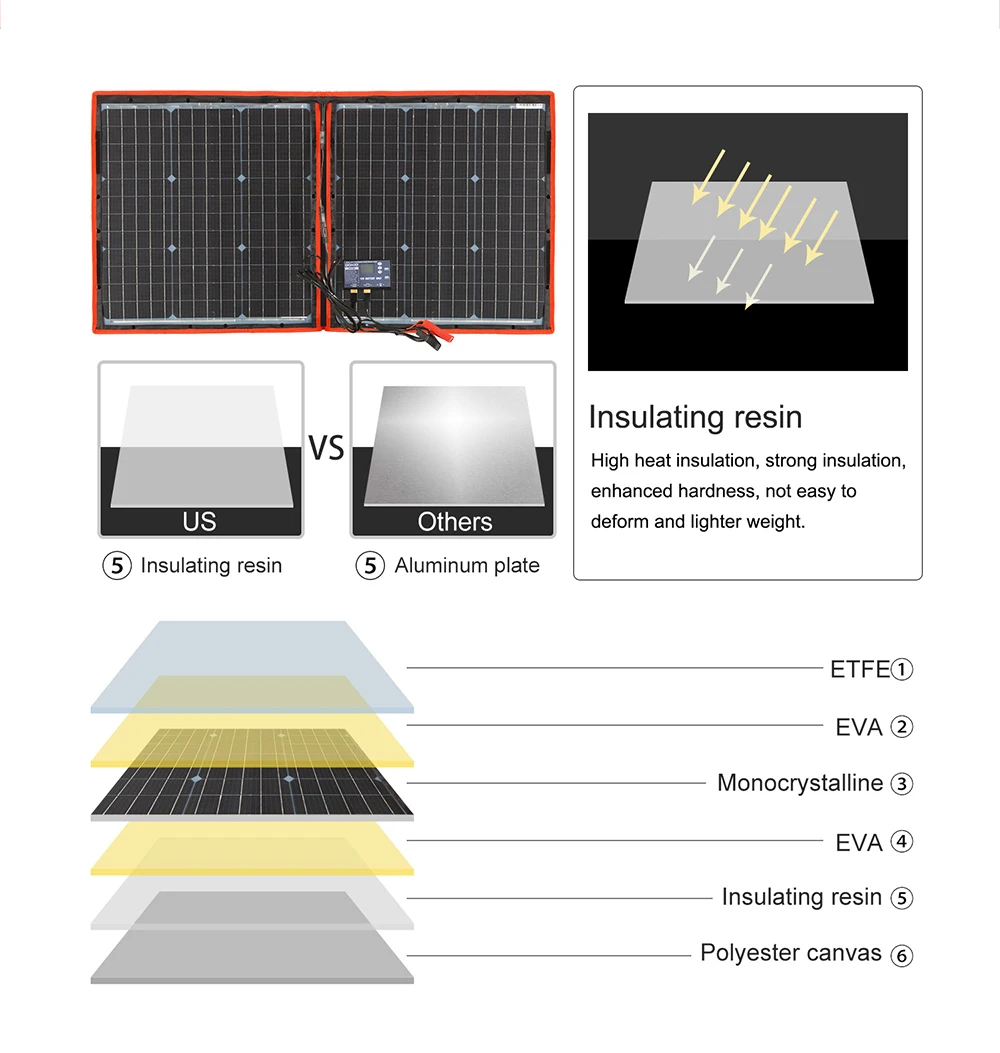

The surface is made of ETFE material, which has the characteristics of corrosion resistance, high temperature resistance, High stain resistance and high light transmittance etc.

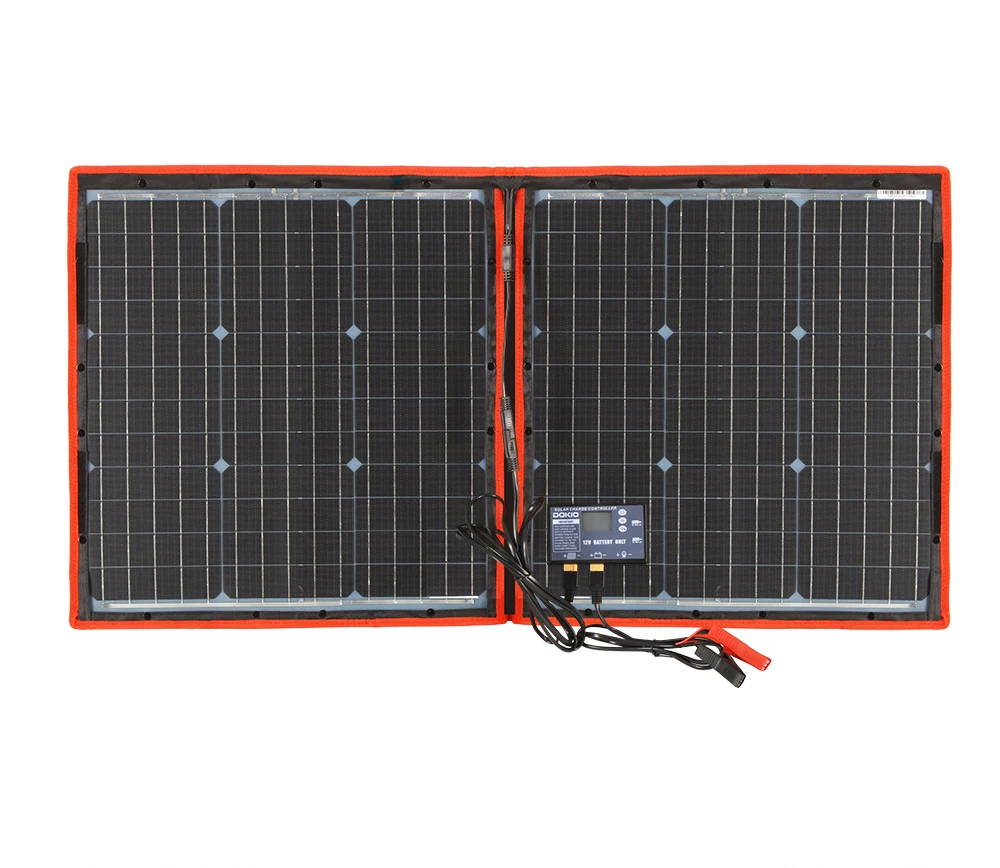

Product Show
